| Rám |
6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| Vidlice |
Suntour XCR36X, 130mm travel, 44mm offset, Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost |

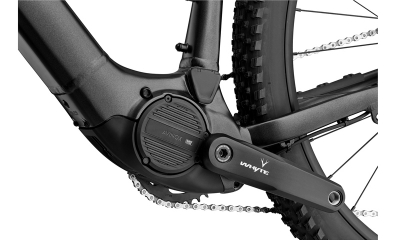

| Motor |
Avinox drive unit with 120Nm maximum torque, 1000W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |

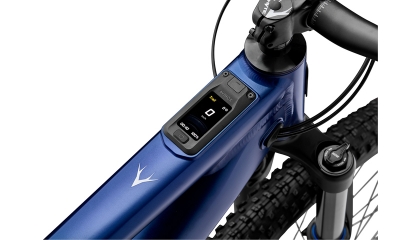

| Display |
Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| Baterie |
Avinox 800Wh fixed battery (600Wh size extra-small), mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| Kliky |
Whyte 155mm length ISIS crank arms, direct mount 36T chainring, narrow wide |
| Přehazovačka |
Shimano CUES U6000, 10 speed |
| Řazení |
Shimano CUES U6000, 10 speed |
| Kazeta |
Shimano LG400, 11-48T, 10 speed |
| Řetěz |
KMC eGlide, 118 links, 10 speed |
| Ráfky |
Whyte eMTB, sleeved joint, 30mm internal width, tubeless ready, 32 hole |
| Pláště |
Maxxis Rekon 29 x 2.6in (front and rear, sizes M-XL) / 27.5 x 2.6in (front and rear, size S) |
| Náboje |
Alloy, 15mm x 110mm Boost spacing, 32 hole / Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| Brzdy |
Tektro M5141 hydraulic disc brake, four piston, 203mm diameter disc rotor / Tektro M5141 hydraulic disc brake, four piston,180mm diameter disc rotor, Avinox tone wheel incorporated in rotor |
| Řidítka |
Whyte 6061 alloy, 30mm rise, 35mm bar bore, 760mm wide |
| Představec |
Whyte alloy, 40mm extension, 35mm bar bore |
| Gripy |
Whyte Trail lock-on |
| Hlavové složení |
ZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings |
| Sedlo |
Whyte Custom |
| Sedlovka |
TranzX dropper post, 30.9mm, frame size specific drop (size S 150mm drop; sizes M-XL 170mm drop) |
